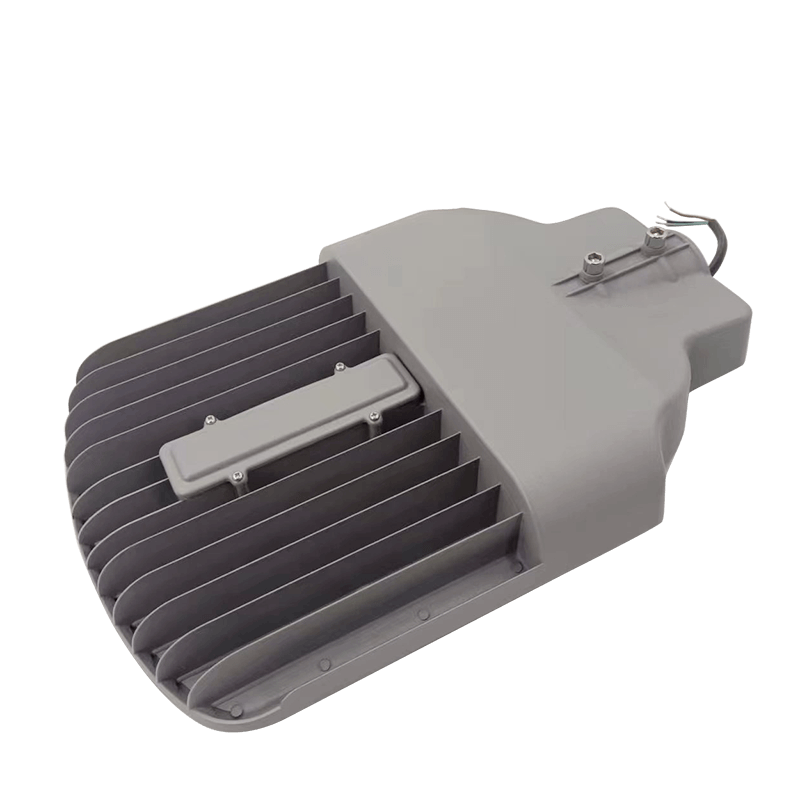

Economic LED street light

LED street lights are widely used in outdoor squares, docks, stadiums, highways, large stadiums, and other lighting places. Using LED Yuanpuri 3030 chip as the lighting source and equipped with Inventronic power supply, it has the advantages of high efficiency, energy saving, safety and environmental protection, low light decay, long life, fast start-up, etc. It saves 50% energy than similar traditional lighting products. The lamps are equipped with hanging rings for fixation, which are easy to install and maintain. They are the first choice for outdoor functional lighting lamps.

Product parameters–

Power supply voltage: AC 180~265 V
Power frequency: 50/60HZ
Rated power: 80W 100W 120W
Rated current: 0.45 A
Color temperature: 6000 K
Power factor: ≥0.98
Luminous flux: 11000LM
Installation height: ≤12M
Overall dimensions: 450*310*80mm
weight 1.9KG
Protection level: IP65
The implementation standard of this product: GB7000

Wiring Connection

1. Brown (red) color: live line
2. Blue (black) color: zero line
3. Yellow green: ground wire

Precautions for use

1. When wiring, make sure the wiring method is correct, the wire ends are in good contact, and protective measures are taken at the wiring location to prevent leakage.
2. When installing the lamp, the fastening screws on the hook must be tightened to prevent the hanging chain from loosening, or the brackets at the four corners must be firmly fixed to prevent falling.
3. The standard wide voltage of this lamp is AC180-265V. Do not use a lower or higher power supply voltage to avoid burning out.
4. The light-emitting surface of this lamp is designed with a PC cover. If it breaks, it needs to be replaced in time.
